Lab 2:Code Of Arms

The questions below are due on Friday February 27, 2026; 10:00:00 AM.

You are not logged in.
Please Log In for full access to the web site.
Note that this link will take you to an external site (https://shimmer.mit.edu) to authenticate, and then you will be redirected back to this page.

You are viewing the PRELIMINARY 6.3100 Spring 2026 web site. Please note that information on this page may change throughout the semester, please check back frequently.

Quick Reference

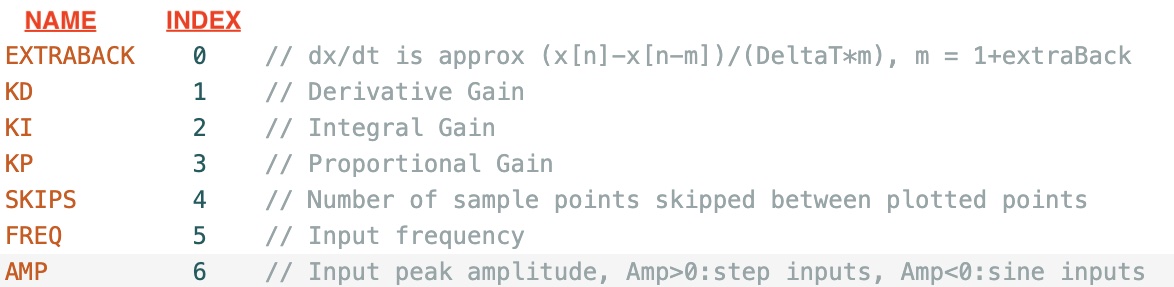

Serial Plotter Send Window Indices

Task Summary

Week A

Build, Calibrate, and Test the Arm Control System (Checkoff 1).
Investigate the behavior of your arm when using only proportional feedback, K_p, and examine the behavior of difference estimates of the derivative as you change the difference interval m (Checkoff 2).
Investigate, experimentally, relationships between proportional and derivative feedback gains and arm performance. Pay particular attention to determining when step responses show the impact of nonlinearity.
Use a combination of proprotional and derivative feedback (by setting non-zero values of K_p and K_d ) to stabilize the arm, and briefly investigate the impact of these gains on disturbance rejection (by dropping a load onto the arm (checkoff 3).

Week B

Relate difference equation natural frequencies to measured arm behavior, and using the relation to estimate \gamma_a (Checkoff 4).
Extract \gamma_a and \beta coefficients by comparing measured and simulated responses of a PD-controlled by comparing to model simulation using a non-instant 1st-order difference equation model of the command-to-arm-torque relation (Checkoff 5).
Add integral feedback to your model, and use the model to design a good PID controller. Compare with experiments, and then investigate how the integral term effects the steady-state error when you introduce disturbances (checkoff 6). Take screen shots with and without the integral term for the POSTLAB!

Introduction

In the last lab you modeled and determined control parameters for a motor speed control system, a relatively stationary example, and in this lab you will fly! Well, maybe "fly" is a bit of an exaggeration, though there will be motion. You will build a propeller-thrust-driven rotating arm, and you will control the arm's position by using angle measurements to adjust propeller motor drive. Perhaps a few videos (from a previous term using a somewhat different setup!!)...

Arm Wrestling

In the videos above, we show three propeller arm control systems. In the top video, we show what would happen if we used the same proportional feedback controller we used for speed control. In the bottom left, we show a video of using a PID controller, like the one you will be able to design by the end of this lab. And in the bottom right picture, we show you the kind of controller you will be able to design by the end of the term (after we cover state-space and observers).

The Key Challenge

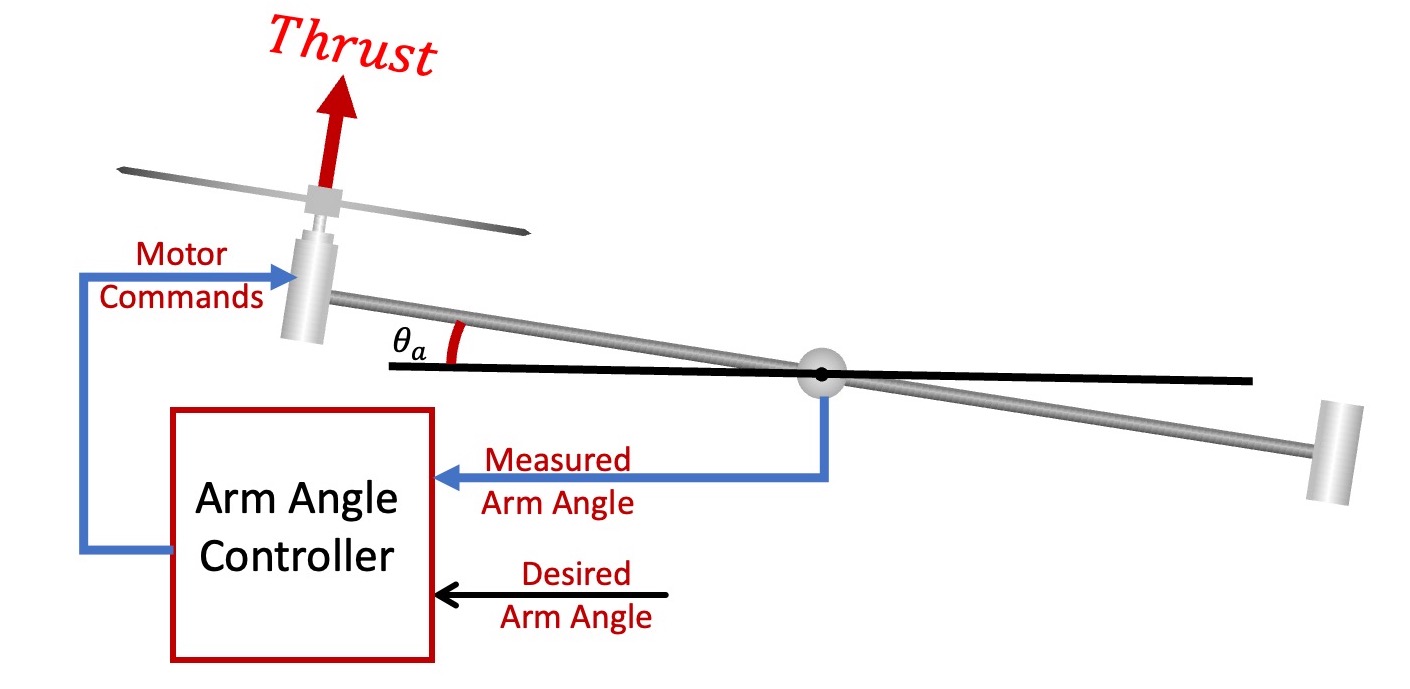

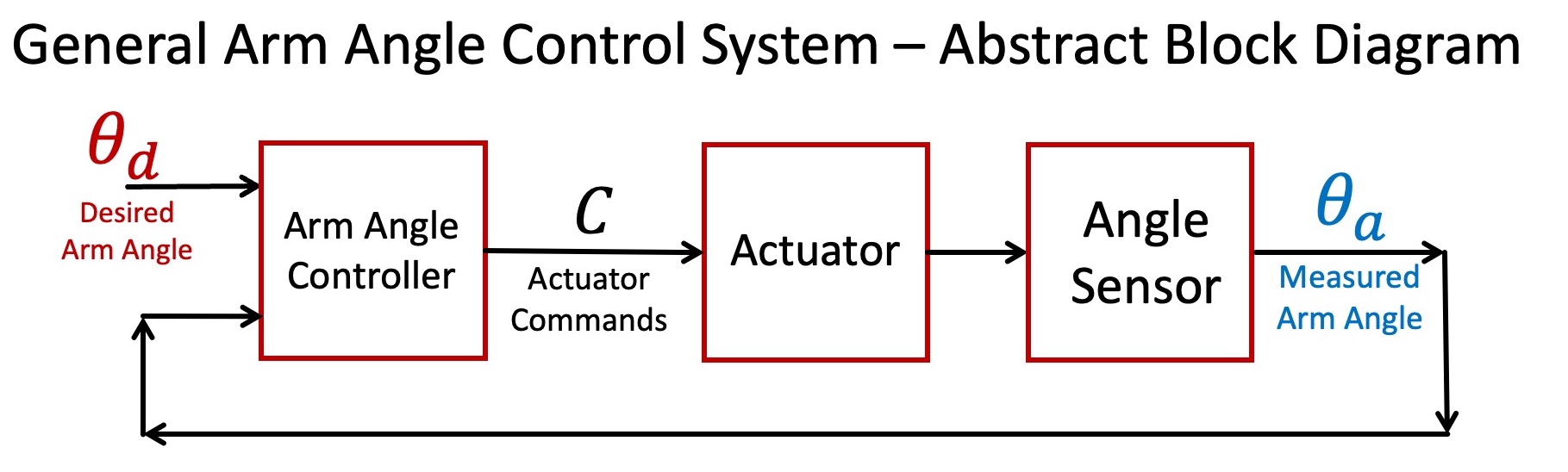

As the abstract block diagram (left panel above) suggests, controlling the rotation angle requires three interconnected functions, an actuator, a sensor and a controller. The angle sensor generates an analog voltage proportional to rotation angle, which is much more direct than the optical encoder sensor used for speed control. But the actuator is more complicated (right panel above). When a motor command is updated by the microcontroller sketch, the voltage across that motor changes, leading to a change in motor speed, which results in a change in propeller thrust, which alters the arm torque, leading to changes in arm rotatational velocity. The layers of indirection make the control problem challenging, but not uncommonly so, most systems using force-based actuators are similar.

Control Design Approach

Like before, you will model your system and then use the model to help determine a good controller, though for the arm angle control, the modeling and controlling is more complicated. So, you will start with a simple proportional feedback controller, measure the arm behavior, and use those measurements to calibrate a second-order difference equation model of the arm. Then you will use your arm model to determine how the controlled-system's natural frequencies change as a function of proportional(P) and delta(D) (or derivative) feedback gains, and use that insight to design a good PD controller. Success! -ish.

It is possible to find an "okay" PD controller using the second-order arm model, a model accurate enough to predict failure for proportional-only control, but not much more. To achieve better performance, you'll need a more sophisticated controller, and to tune it, you will need a more comprehensive arm model. In particular, you will add an integral (or summation) term to your controller (the "I" in PID), and then tune the three gains (proportional, K_p, derivative, K_d, and integral, K_i) using a model that includes a non-instant relation between changes in motor command and the resulting changes in propeller thrust. And to analyze this complicated controller and model system? For that, you will need to make use of the more sophisticated analysis techniques and computational approaches you've just learned.

Assemble and Test

Please build the propeller-arm control system as described here. Be sure to complete the testing at the end of the assembly guide so that:

the angle sensor axle is oriented correctly,
the measured angle displayed by the serial plotter is zero when the arm is horizontal,
and you've adjusted the nominal motor command so that the associated propeller thrust holds the arm level (that is, horizontal).

Checkoff 1:

Demonstrate your calibrated arm.

Use the low proportional gain described in the assembly guide to demonstrate the arm holding itself level. Try blowing on the arm. How well does the arm hold its horizontal position?
Set K_p = 0 and adjust the arm position by turning the potentiometer (the same one you adjusted in lab1) to adjust the nominal motor command (and therefore the propeller thrust). Try to adjust the potentiometer so that the arm is rotated to approximately -0.75 radians (-45 degrees, so BELOW level). How well does the arm hold this position?
Now adjust the potentiometer so that the arm is approximately +0.75 radians (+45 degrees, so ABOVE level). How well does the arm hold this position?
What fraction of the gravity force on the arm acts to rotate the arm in each case?
What is different about the two arm position? Hint: think about how the gravity force changes when you perturbn the arm angle away from +0.75 radians versus how that force changes when you perturb away from -0.75 radians.

Experiment with Proportional Gain

For the second checkoff, we would like you to try some preliminary experiments with proportional feedback, to help you develop an appreciation for the differences between the arm angle and speed control problems.

Determine how the response of the system changes with K_p by using the following procedure:

Use the send window to set K_p (type "3 0.6" for example).
Hold the arm (with your hand) so that the serial plotter shows the arm is about 60 milliradians above horizontal.
Be prepared to stop the plotter -- then let go of the arm!
Stop the plotter, then stop the arm by grabbing the end of the chop stick or by pulling the large power connector.
Repeat with a new K_p

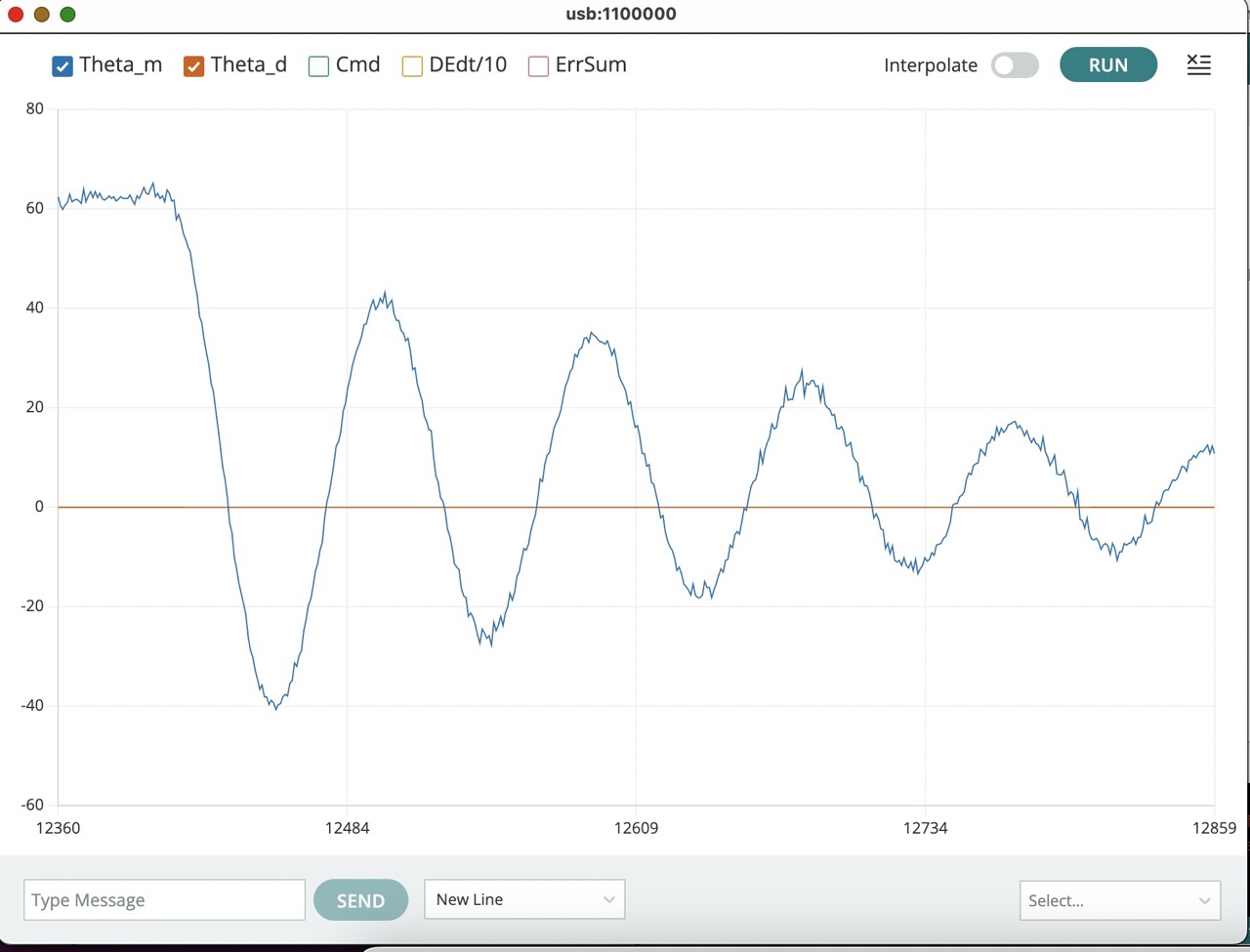

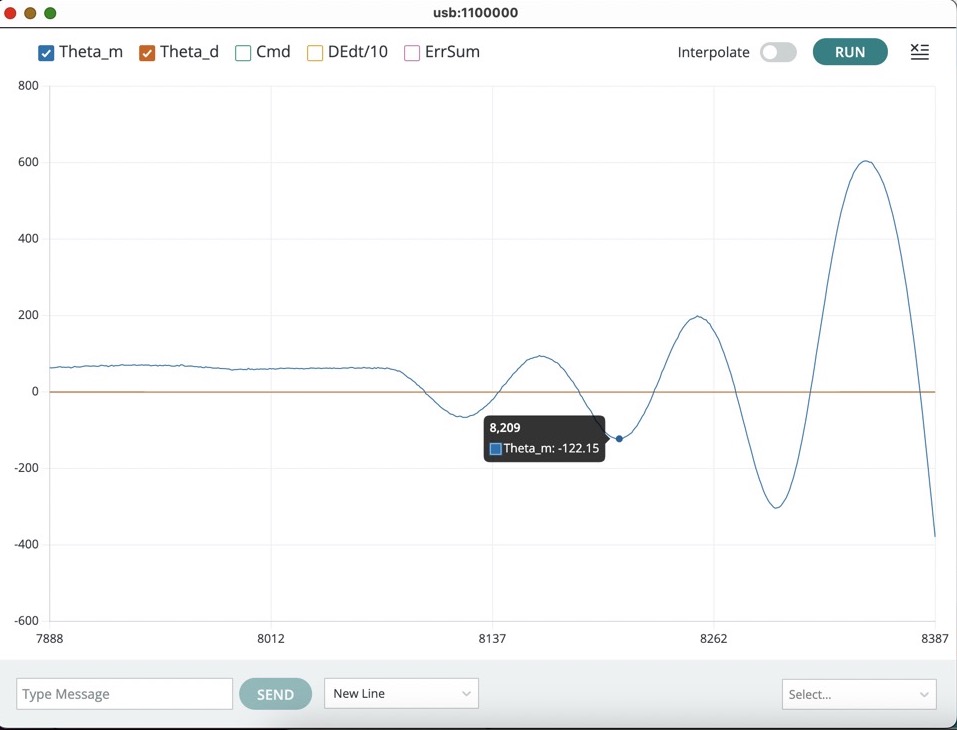

You should be able to find K_p's in the range \frac{1}{4} < K_p < 2 that produce both stable and unstable oscillating behaviors (like the two figures below). Try to find one that is stable (decays to zero like the first figure below), and one that is unstable (like the second figure below). Take screen shots for these two behaviors. You will need them for the checkoff.

Examining Cmd and DEdt/10

Once you have found a pair of K_p's (one producing decaying, and the other growing, oscillations), turn on the serial plotter plots for the motor command and the derivative of the error, and redo your growing oscillation experiment. You should be able to produce a figure like the one below.

The DEdt plot shows a difference approximation to the time derivative of the arm angle error. The error is defined as the desired minus the measured angle,

e[n] \equiv \theta_d[n] - \theta_a[n],

and the difference approximation to its derivative is given by

DEdt[n] = \frac{e[n]- e[n-m]}{m\Delta T}

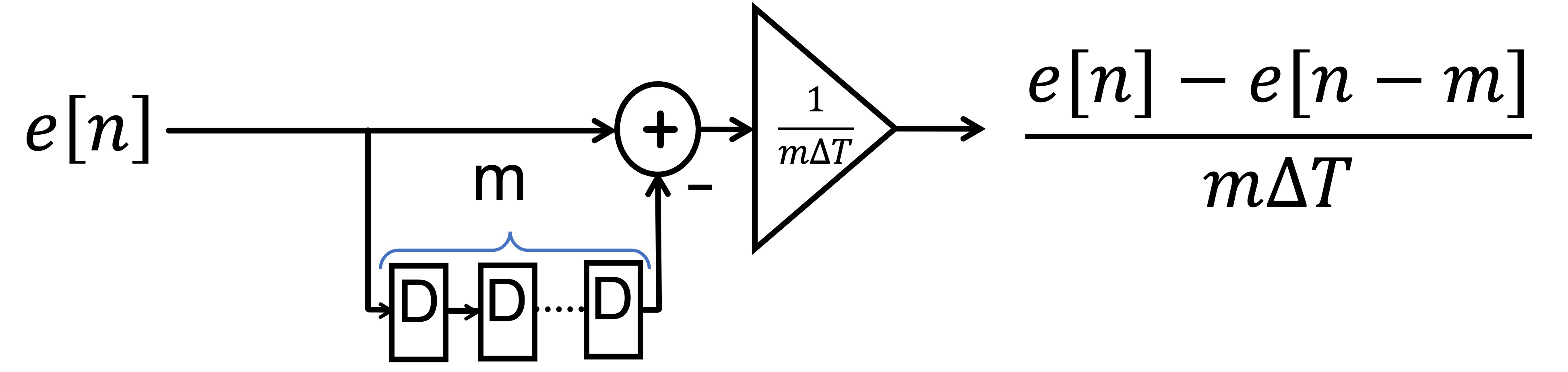

or in block diagram form

where

m = 1 + extraBack

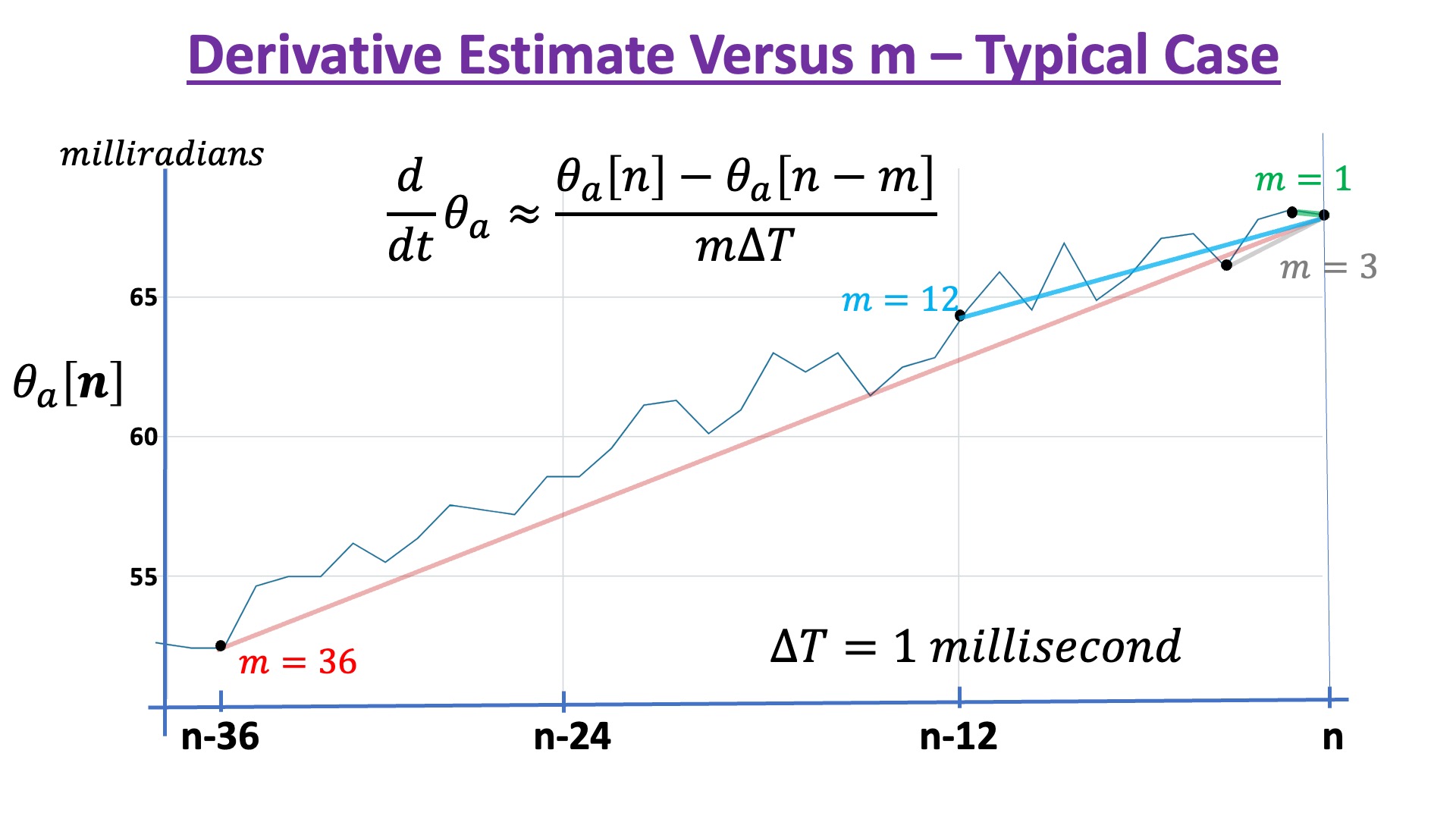

indicates how far backward to look for a difference sample . If m is large, the "derivative" is less noisy, but is less "up to date". If m is small, the "derivative" is noisy, but is also more immediate. A typical case is shown in the figure below.

Try increasing m (integers between 1 and 10) using index 0 (EXTRABACK) in the send window. You should be able to set m to produce a figure like the one below.

Checkoff 2:

Show the staff member your screen shots for the largest value of K_p for which your system was stable (the oscillations decayed).
Show the staff member your screen shots for the smallest value of K_p for which your system was unstable.
What is the relation between the angle, command, and DEdt signals? Do the peaks in these waveforms line up?
How do the waveforms change as m gets bigger? Note that on line 19 in the sketch, #define offsetExtraBack 2 sets an offset of two for EXTRABACK. When you type "0 2" in the send window, you are setting EXTRABACK to four, and therefore setting m=5 . If you want to set m = 1 , type "0 -2" in the send window.

Disturbing Observations

At the beginning of this lab you observed evidence of nonlinearity: differences in arm behavior when positioned above horizontal versus below horizontal. And as we saw in lecture this past week, adding derivative feedback, K_d, helped stabilize the path following robot, and increasing proportional feedback, K_p, improved disturbance rejection. So for this last checkoff of part A, we would like you to investigate (experimentally) stability, nonlinearity and disturbance rejection.

Stability and Derivative Feedback

To get a feel for using derivative feedback to stabilize the arm, try the following:

Use the send window to set extraback = 5 (type "0 3" in the send window, to add 3 to offsetExtraBack, which is 2), K_d = 0.2 (type "1 0.2" in the send window) and K_p = 0.5 (type "3 0.5" in the send window). The arm should be level, if not, adjust the potentiometer to level it.
Set the step frequency to 0.1 (type "5 0.1" in send window), and then set the step amplitude to 0.2 (type "6 0.2").
Note the step response, and then try setting K_p = 0.75, then K_p = 1.0, 1.25, 1.5, ... Note how the step response changes with increasing K_p. What is the largest K_p you can use before the system becomes unstable?

Evidence of Nonlinearity

How nonlinearity impacts performance can often be predicted using linear system ideas. Try the following large-step experiment:

Set the step amplitude to 0.35 , K_d=0.1 and K_p=0.6.
Readjust the command offset potentiometer to best match the steady-state-ish values of the desired and measured arm angles.
Decrease K_d until your falling step response oscillates a couple of times before settling down.

Your plot should look something like the plot below (and your K_d should be somewhere between 0.02 and 0.08). What do you observe about the difference between the rising and falling step responses, and can you explain the difference (You will probably need some staff help to answer this one!)?

DIY: Drop It Yourself

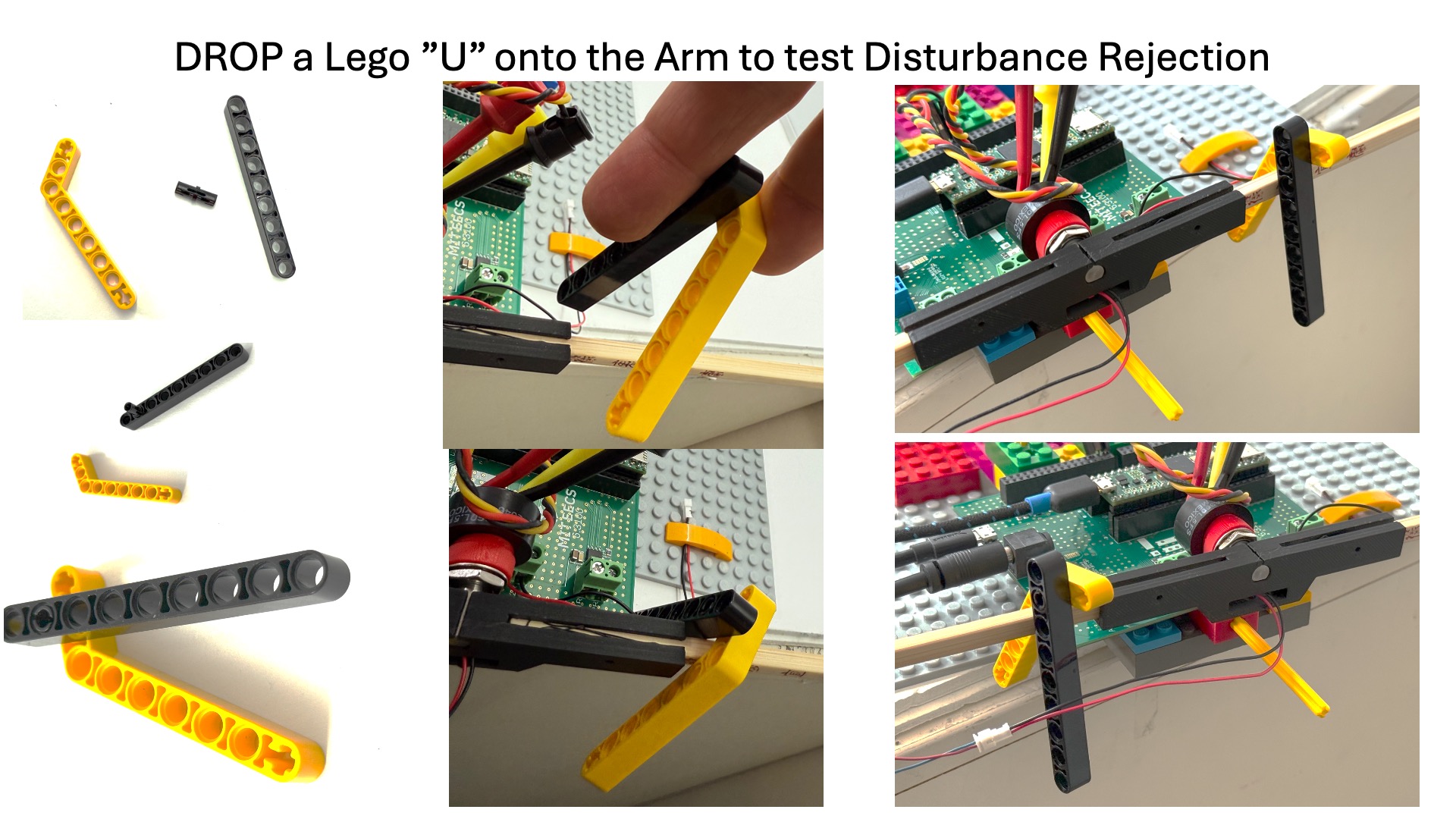

Now lets try disturbing the arm, by dropping a Lego "U" on the arm as shown in the picture below.

TURN OFF THE STEP INPUT, set the input amplitude to zero (type "6 0.0" in the send window)
Set K_d = 0.2, K_p = 0.5, .
Readjust the command offset potentiometer to zero the arm angle.
Try dropping the Lego "U" on your arm and note how the arm angle changes (drop the "U" close to the angle sensor, so it does not have too much leverage, and try to drop it in the same place when you repeat the experiment below).
Try setting K_p = 0.75, redrop the "U", and note how much the arm angle changes. Repeat with K_p = 1.0, 1.25, 1.5.

Checkoff 3:

Please prepared to show and explain your experiments to a staff member.
Stability: What do you observe about the arm step response as you increase K_p?
Nonlinearity: For the large step experiment, what did you observe about the difference between the rising and falling step responses? Can you explain it? (You will probably need some staff help to answer this one!)
Disturbance Rejection: What do you observe about the response to the U-drop disturbance as you increase K_p?

STOP HERE FOR WEEK A!!!!

Simple Model, Simple Control

In this section, we assume that the motor command and arm torque are related by a scaling factor, and use that model to determine a second-order difference equation model for propeller arm system with proportional control.

The Structural and Functional Blocks

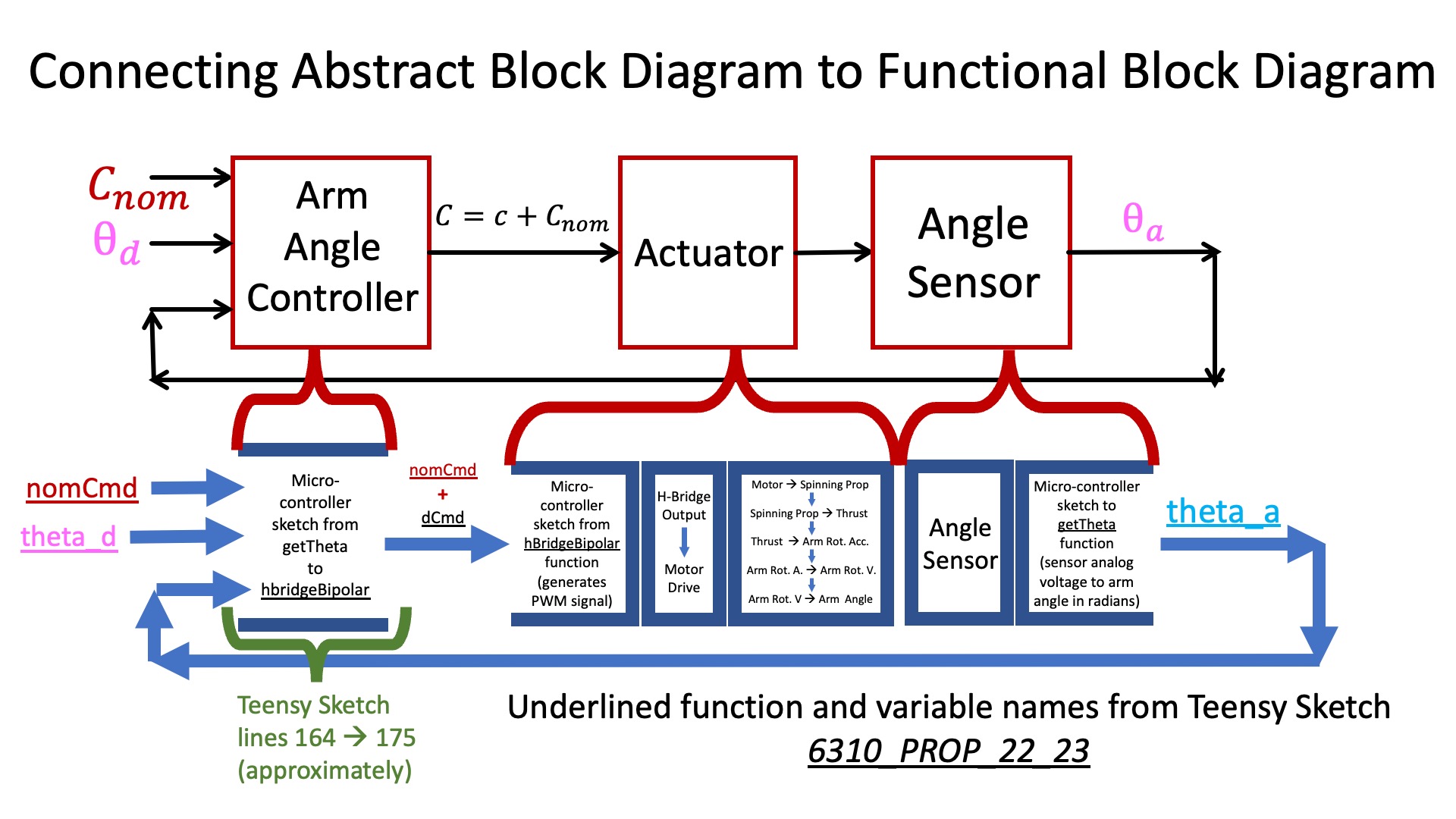

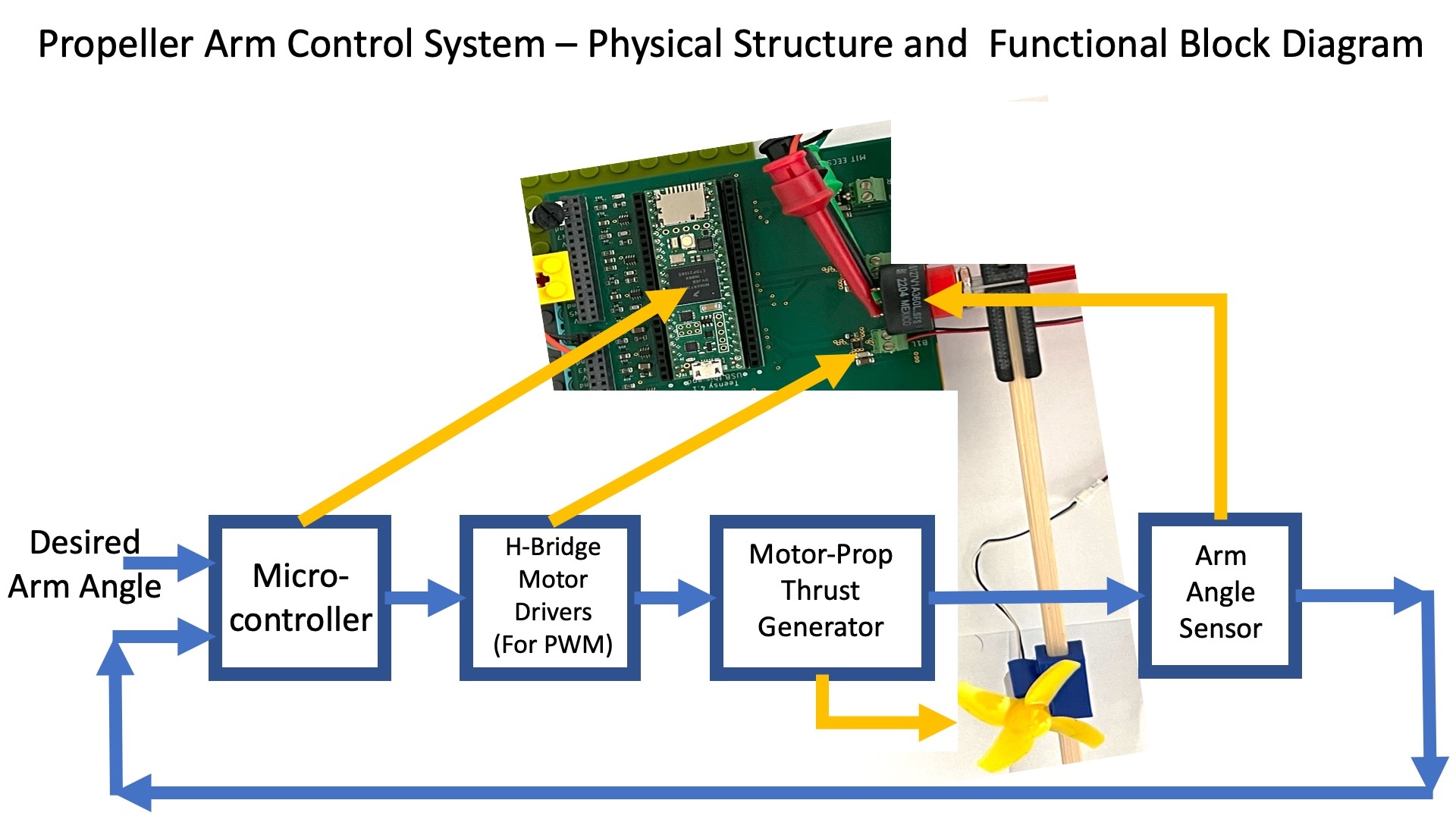

The main structural components of our angle control system are blocked out below.

The connection between the structural components and the abstract control functions are detailed in the figure below.

In the above diagram, the command to the actuator (the motor command) is divided into two parts, C = C_{nom} + c. Note that C_{nom} was set to a fixed value during calibration, one that produced a thrust that exactly cancelled any torques due to gravity when \theta_a = 0 (the horizontal arm case). Therefore, as long as we consider small rotations from horizontal, we can ignore C_{nom} and gravity, and develop models that relate arm torque to c alone (note "little c").

From Torque to Angle

Before diving into the deep end (the deep end being modeling the dynamic relation between motor command and arm torque), let us consider the relationship between torque and velocity, followed by the relationship between velocity and angle.

If the torque on the arm, \tau_a[n-1], is constant for the time between the n-1^{th} and the n^{th} sample, then the change in angular velocity, \omega_a, is given by

\omega_a[n] = \omega_a[n-1] + \Delta T \cdot\frac{\tau_a[n-1]}{I_a},

where I_a is the arm's moment of inertia and \Delta T is the time between samples in seconds. Since the rotation velocity is NOT constant over a sample interval, the change in arm angle is approximately

\theta_a[n] \approx \theta_a[n-1] + \Delta T \cdot \omega_a[n-1]

where the approximation is accurate if \Delta T is small.

We can assemble the above pair of difference equations into a two-state state-space description,

\begin{bmatrix}\theta_a[n] \\ \omega_a[n]\end{bmatrix} = \begin{bmatrix}1 & \Delta T\\ 0 & 1\end{bmatrix} \begin{bmatrix}\theta_a[n-1] \\ \omega_a[n-1]\end{bmatrix} + \begin{bmatrix}0 \\ \Delta T\end{bmatrix}\frac{\tau_a[n-1]}{I_a}.

A simple model relating motor command to arm torque

As we noted above, if the c part of the motor command is non-zero, then the propeller will produce a thrust that is not entirely cancelled by gravity, and the torque produced by that excess thrust will accelerate the arm. The simplest, but likely inaccurate, model for the relationship between c and \tau_a is a scale factor, as in

\tau_a[n] = \gamma_{c2t} c[n].

If we examine the description of the actuator in section 4.1, we can see that we are using a scalar to model a complicated process. That process starts with a change in motor command that gets converted to a change in a motor-driving H-bridge-buffered PWM signal, which in turn changes the speed of a thrust-generating propeller, resulting in a change in arm torque. Seems like a lot to expect from one number. And in addition, we already know that there is a non-instant relation between motor command and propeller speed, because we modeled that as part of the first lab.

So, the simplest model won't be perfect, models never are, but some are useful. Let us see if this one is. As a first step, let us use the model to eliminate tau_a from our state-space description,

where we have reduced the number of parameters by replacing the ratio \frac{\gamma_{ct}}{I_a} with one coefficient, \gamma_a.

Proportional Control

By proportional control, we mean that

c[n] = K_p\left(\theta_d[n]-\theta_a[n]\right)

where c[n] is the perturbation from the forcing-balancing-at-horizontal nominal command to the motor (which we can ignore as noted above), K_p is our proportional gain, \theta_d[n] is our desired perturbation in arm angle, and \theta_a[n] is our measured perturbation in arm angle.

Assuming the desired angle is zero (a level arm), c[n] = K_p\left(-\theta_a[n]\right) in our state-space description,

\begin{bmatrix}\theta_a[n] \\ \omega_a[n]\end{bmatrix} = \begin{bmatrix}1 & \Delta T\\ -\Delta T \gamma_a K_p & 1\end{bmatrix} \begin{bmatrix}\theta_a[n-1] \\ \omega_a[n-1]\end{bmatrix}

Checkoff 4

Determine an analytic formula for the natural frequencies of the 2^{nd}-order difference equation describing the proportional feedback system above, as a function of \gamma_a and K_p, and then plot them as a root locus in the complex plane. What can you say about the plot, and the stability of the system, without knowing precise values for \gamma_a and K_p?

In Checkoff 2, you found the smallest K_p gain for which your arm produced a growing oscillations when started with a 60 milliradian offset from level. Redo the experiment to find the smallest K_p that produces growing oscillations, but use a starting offset of 150 milliradians, and then repeat your experiment using twice that K_p (we will refer to these gains as K_{p0} and 2K_{p0}). You will likely find that using a larger initial offset gives you a smaller K_{p0} than last week, so when you use 2K_{p0}, the arm should not be too unstable. During each experiment, be sure to pause the serial plotter quickly, so you can measure the oscillation periods (using the plotter's curser) when the growing oscillation amplitude is still small. Keep in mind that \Delta T = 0.001 seconds, and that the plotter plots every tenth sample (so there are one hundred plotted points per second).

By comparing your measured oscillation periods to your natural frequency formulas, you should be able estimate \gamma_a for your model, as well as check its consistency. It may be useful to review sections 4 and 5 of oscillating prelab, and take note of the approximation for the angle of a complex number z = a + jb when a = 1 and |b| << 1. That is,

\frac{\sin{\phi}}{\cos{\phi}} = \frac{b}{a} = b,

and if |b| << 1, \cos{\phi} \approx 1 and

\sin{\phi} \approx \phi \approx b.

Enter your measured oscillation period (in seconds) when K_p = K_{p0}:

Enter your estimate of \gamma_a:

Checkoff 4:

Show your formula for the natural frequencies. What do they tell you about the stability of the proportionally controlled system?
Show the plots of the propeller arm under proportional control for K_p = K_{p0} and K_p = 2K_{p0}. Determine the two periods of the oscillation, and their period ratio. Is the ratio consistent with your model?
Try estimating \gamma_a based on the oscillation period when K_p=K_{p0}, and compare it to estimating \gamma_a based on the oscillation period when K_p=2K_{p0}. How close are your estimates?

Better Controller, Better Model.

Physical analogies can be misleading when first learning about feedback control, but in the case of the propeller arm with PD control, perhaps the intuitive insight is worth the risk. So, consider the above proportional control experiments on the arm. After you set a gain, you pull on the arm, then let go and then watch the arm oscillate. That sounds a lot like pulling on a spring, then letting it go, and watching it oscillate. Also, spring forces are typically proportional to displacement from equilibrium, with stiffer springs generating larger forces. Analogously, proportional feedback produces a "force" for the arm is proportional to the error in angular position, with larger values of K_p generating larger "forces". So isn't using a larger K_p like switching to a stiffer spring, don't they both result in faster oscillations?

Pull on a spring, and at least in this reality, its oscillation will not grow in time. That is, springs don't go unstable but our arm does. Nevertheless, if one sticks with the spring analogy, then one might be tempted to try "damping" the spring's oscillations by adding a friction term. Friction forces are typically proportion to velocity, the time derivative of position, so perhaps it is not so surprising that one can "damp out" the arm's oscillation by adding a feedback term that is proportional to the position error's time derivative.

We can add a feedback term that is proportional an approximation of the derivative (the difference in a pair of angle measurements, i.e. the n^{th} minus the (n-m)^{th} sample, divided by the time between measurements, i.e. (m \Delta T). We have already seen experimentally that adding derivative feedback stabilizes the arm (when we made K_d nonzero), but there are other consequences. Arm angle derivatives typically change more rapidly than arm angle, so motor commands produced by proportional plus derivative (PD) controllers change more rapidly, rapidly enough to invalidate our model which assumed torque changes instantly with motor command. If we want to model PD control, we will need a more accurate model.

For a 2 \times 2 matrix, eigenvalues are easily computed by hand, but a system that models both derivative feedback AND a non-instant command to torque model will be larger, and its eigenvalues too time-consuming to compute by hand. So we've included a browser-based Matrix Root-Locus and Trajectory Tool (below) that you can use directly on this page.

PD Difference equation

We define the error in angular position for the arm as

e[n] = \theta_d[n] - \theta_a[n] = - \theta_a[n]

where the rightmost equality follows from assuming a zero desired angle, \theta_d[n]=0, (level arm). Then using proportional plus derivative (PD) feedback gives us a motor command

c[n] = K_p e[n] + K_d\left( \frac{e[n] - e[n-m]}{m \Delta T}\right) = -\left( K_p \theta_a[n] + K_d\left( \frac{\theta_a[n] - \theta_a[n-m]}{m \Delta T} \right) \right).

where m is the number of "look-back" points mentioned at the beginning of lab.

For the case m=1, we can write the vector difference equation as

\begin{bmatrix}\theta_a[n] \\ \theta_a[n-1] \\ \omega_a[n]\end{bmatrix} = \begin{bmatrix}1 & 0 & \Delta T\\ 1 & 0 & 0 \\-\gamma_a \left(\Delta T K_p + K_d \right) & \gamma_a K_d & 1\end{bmatrix} \begin{bmatrix}\theta_a[n-1] \\ \theta_a[n-2] \\ \omega_a[n-1]\end{bmatrix}

The matrix in the above system (the m=1 case) is 3 \times 3, so it has three eigenvalues, and therefore there are three natural frequencies. Suppose m = 5, how many natural frequencies would there be?

A Computational Tool

For the rest of this lab, we will focus on using our understanding of natural frequencies to calibrate progressively more complete models of a propeller arm system with PID control. The Matrix Root-Locus and Trajectory Tool embedded below lets you examine eigenvalue root-locus plots and zero-input responses directly in your browser — no external software needed. Use it to sweep gains, visualize how the natural frequencies move, and compare simulated ZIR responses to your experimental measurements.

In the above check-off, you estimated \gamma_a for your model, as well as tested its prediction. You can also compare your responses to simulation using the tool below. Note that all our natural frequencies are extremely close to one on the unit circle, so the root-locus plot defaults to zoom=True, which automatically crops the view around the interesting region. Use zoom=False to see the full unit circle.

Matrix Root-Locus and Trajectory Tool

Use this tool to analyze a discrete-time state-space system x[n] = A\,x[n-1] by entering the system matrix A as a Python nested list. Matrix entries may be expressions involving any of the five named quantities: Kp, Kd, Ki, G (for \gamma_a), and B (for \beta). Matrices from 2×2 up to 5×5 are supported.

Input format: enter the matrix followed (optionally) by comma-separated parameters:

Kp=[lo,hi], Kd=[lo,hi], or Ki=[lo,hi] — sweep ONE gain over a range for the root-locus plot; the others are fixed scalars.
Kp=value, Kd=value, Ki=value — fix a gain at a scalar value (default: Kp=1, Kd=0, Ki=0).
G=value, B=value dT=value— set the model constants \gamma_a and \beta (default: G=1, B=0, dT=0.001).
x0=[v1,v2,...] — initial condition vector for a ZIR trajectory plot (default: first state = 1, rest = 0). Only used when no gain is swept.
n=[start,end] — sample range for trajectory plots (default: n=[0,40]).
zoom=True or zoom=False — zoom the root-locus panel in around the unit circle (default: zoom=True). Use zoom=False to see the full complex plane.

Example — a 3×3 PD arm model sweeping K_d from 0 to 0.2 with K_p=1 and \gamma_a=65 specified via G:


[[1,0,0.001],[1,0,0],[-G*(0.001*Kp+Kd), G*Kd, 1]], Kd=[0,0.2], Kp=1, G=65

Any valid entry earns full credit — this is a design exploration tool.

A, params:

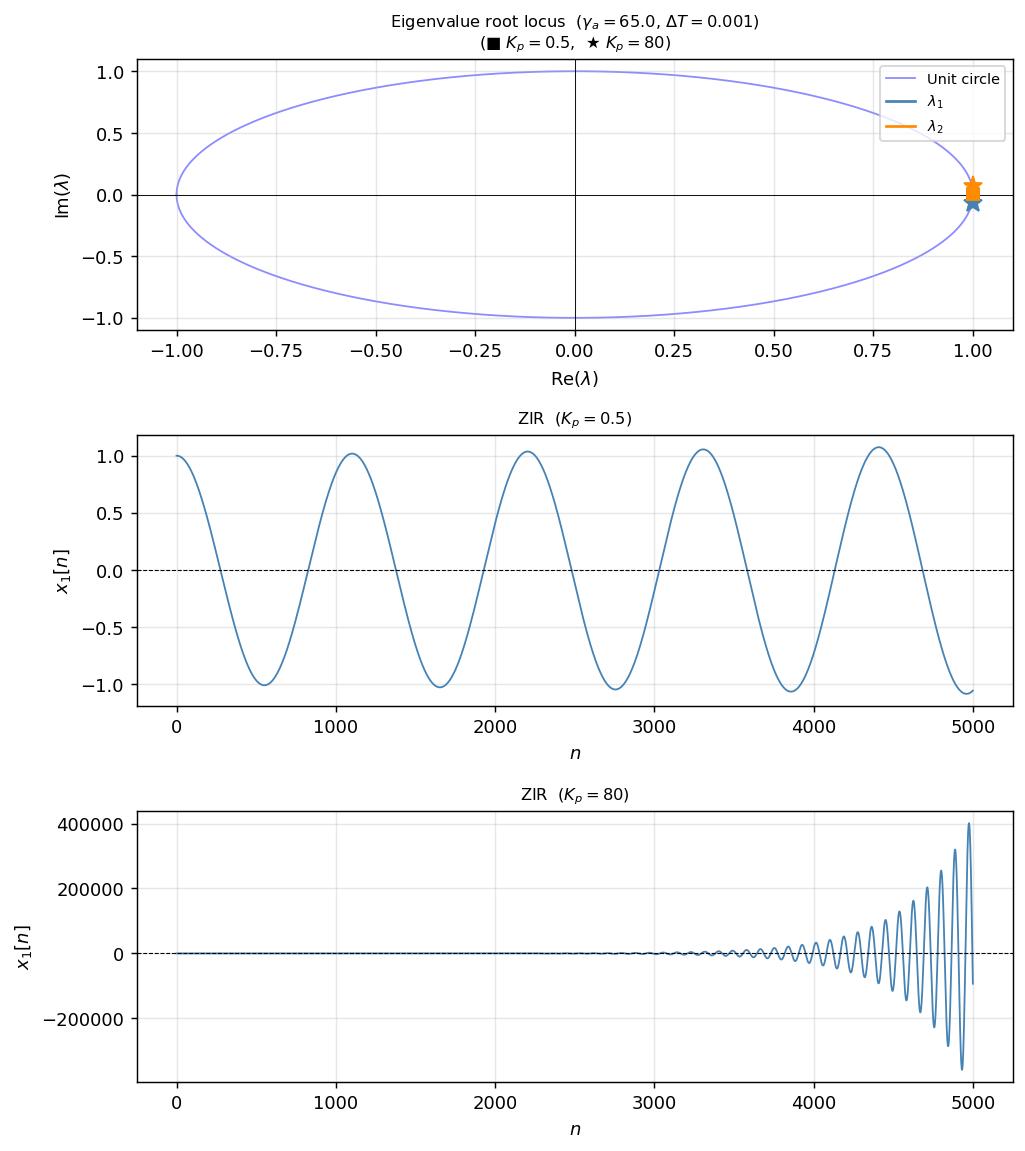

You can use the tool to analyze your arm with either P or PD control, providing your values for \gamma_a and \beta (we describe \beta below, for now assume \beta = 0). For example, below we show a proportional-only example with \gamma_a = 65, \beta = 0, sweeping K_p from 0.5 to 80 (using zoom=False to show the full unit circle). The two eigenvalues start near 1 on the real axis, meet, then travel along the unit circle and eventually leave it as K_p grows — confirming that proportional control alone can never damp the oscillations.

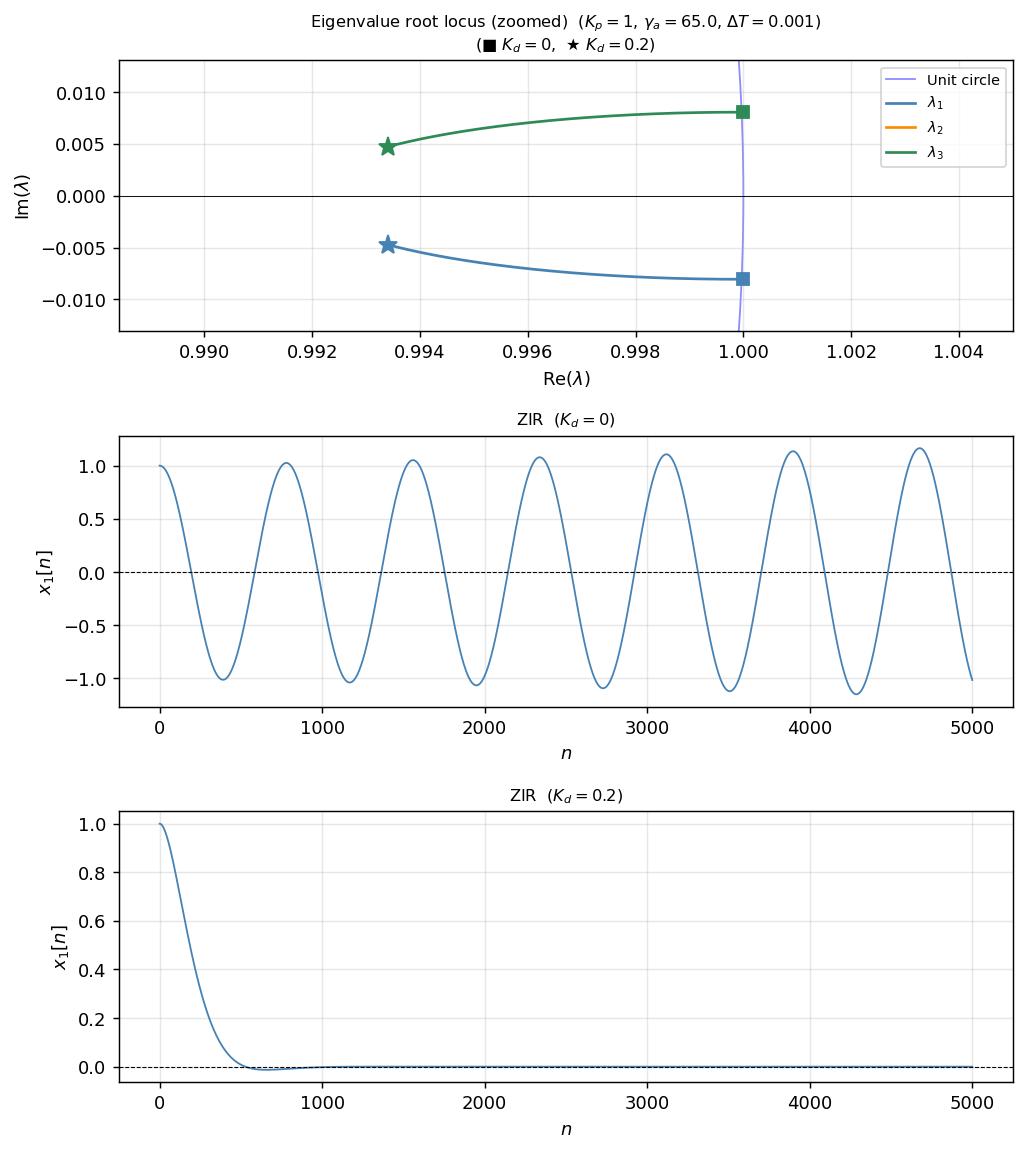

Below we show a PD example (m=1, K_p=1 fixed) sweeping K_d from 0 to 0.2. At K_d=0 (■) the complex eigenvalue pair sits right on the unit circle; as K_d increases the pair is pulled inside, stabilising the arm. Note the third eigenvalue (near the origin) that comes with the m=1 look-back state.

Please keep in mind that you will need to scale your experimental results when comparing step responses to the tool's ZIR plots (the tool assumes initial arm angle is 1 radian, with all other states initially zero). Once you have derived the A matrix for your own system, enter it into the tool with your estimated \gamma_a and sweep K_p to reproduce plots like those above.

Non-Instant Motor Command to Arm Torque Model

Propeller thrust produces arm torque, and thrust tracks propeller speed instantly but nonlinearly, being approximately proportional to the square of the instantaneous propeller speed. Motor voltage tracks motor command linearly and almost instantly,Propeller speed tracks motor command, but not instantly, and somewhat nonlinearly. Together these observations might suggest we need a very non-linear and non-instant model relating motor command to arm acceleration, but that is not the case. The motor command to arm acceleration is suprisingly linear (fortuitous cancellations no doubt), though definitely NOT instant.

Above we used oscillation period measurements versus proportional control gain (K_p) to calibrate \gamma_a assuming the relationship between motor command and arm acceleration was given by

\alpha_a[n] \approx \gamma_{a} c[n].

According to the above equation, the arm acceleration changes instantly with changes in motor command, and that might be a good approximation if the motor commands change slowly enough. As we noted above, arm angular acceleration is proportional to propeller thrust, and since thrust does not change instantly with motor command, neither does arm angular acceleration.

In the equations for the model of the previous section, arm acceleration does not appear explicitly as a variable because we used the instant model and some algebra to eliminate it. But if we want to model the fact that arm angular acceleration does not instantly track motor command, we need to introduce it as a state variable, and describe its evolution with an associated difference equation. One possible first-order model of arm angular acceleration is

\alpha_a[n] \approx \alpha_a[n-1] + \Delta T \cdot \beta \left( \alpha_a[n-1] - \gamma_{a} c[n-1]\right),

where \beta < 0 adjusts the rate of acceleration build-up.

In the above equation, if the motor command is a constant, i.e. c[n] = c[\infty], and -\frac{1}{\Delta T} < \beta < 0 , then what is \lim_{n \rightarrow \infty} \alpha_a[n]? And if the the motor command is NOT a constant, but \beta = -\frac{1}{\Delta T}, what is the relationship between \alpha_a[n] and c[n].

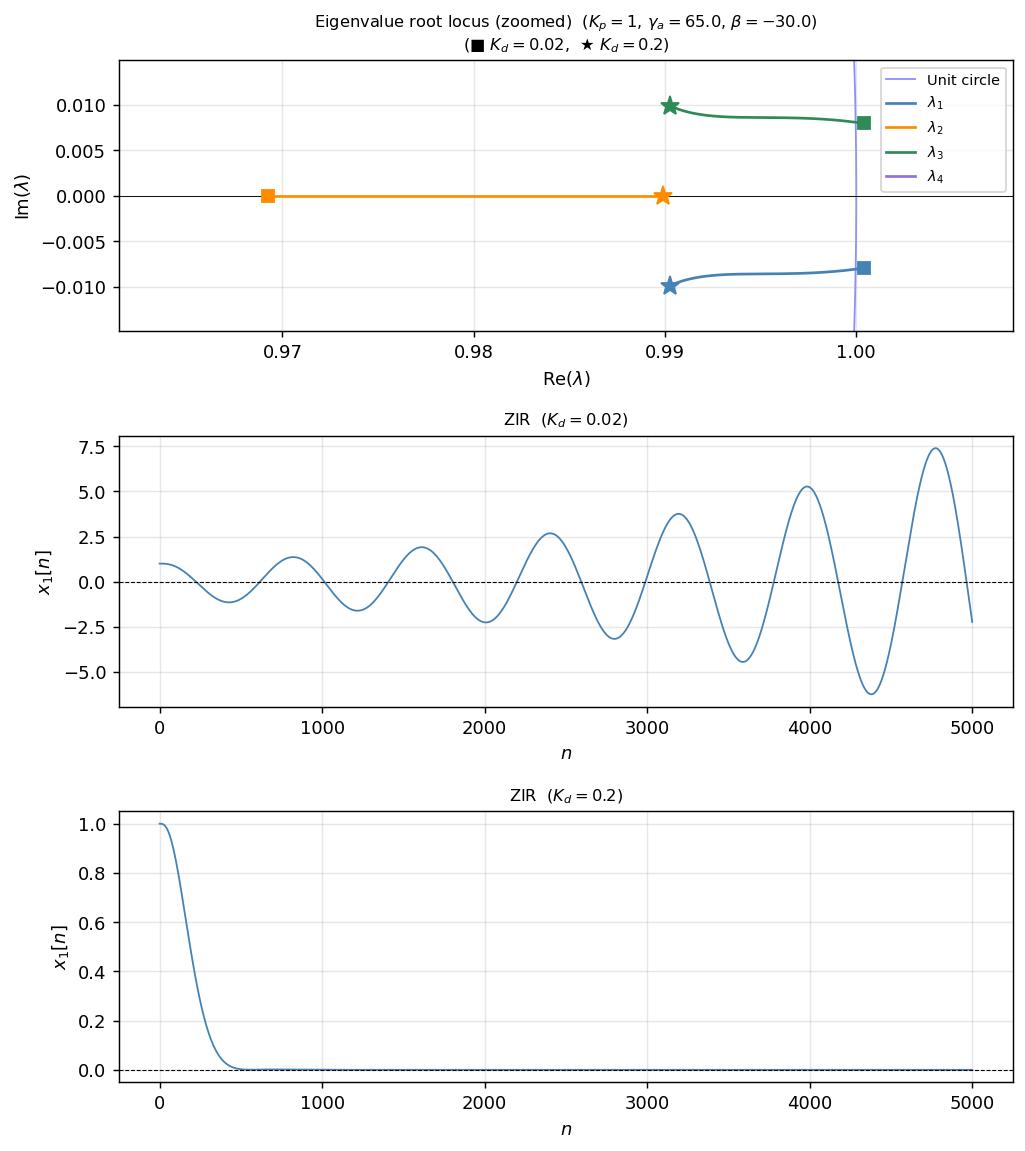

For the case m=1, we can write the vector difference equation for a system that includes the non-instant model, as in

\begin{bmatrix}\theta_a[n] \\ \theta_a[n-1] \\ \omega_a[n] \\ \alpha_a[n] \end{bmatrix} = \begin{bmatrix}1 & 0 & \Delta T & 0\\ 1 & 0 & 0 & 0 \\ 0 & 0 & 1 & \Delta T\\ A_{4,1} & A_{4,2} & A_{4,3} & A_{4,4} \end{bmatrix} \begin{bmatrix}\theta_a[n-1] \\ \theta_a[n-2] \\ \omega_a[n-1] \\ \alpha_a[n-1] \end{bmatrix}

Assuming that \theta_d[n] = 0 for all n, so the motor command is given by

c[n] = -\left( K_p \theta_a[n] + K_d\left( \frac{\theta_a[n] - \theta_a[n-1]}{\Delta T} \right) \right),

then what are the formulas for A_{4,1}, A_{4,2}, A_{4,3}, and A_{4,4}. Enter the formulas below using valid python expressions. Also, use B for \beta, dT for \Delta T, (note that dT has a CAPITAL T), G for \gamma_a, Kp for K_p and Kd for K_d.

A41 =

A42 =

A43 =

A44 =

Implementing and Calibrating the Non-instant model.

Now that you have derived the formulas for A_{4,1} through A_{4,4}, enter the complete 4\times4 non-instant model into the Matrix Root-Locus and Trajectory Tool above, using your own \gamma_a estimate and a starting guess for \beta in the range [-200, -1]. To give you a sense of what to expect, here is an example plot for \gamma_a = 65, \beta = -30, K_p=1 fixed, sweeping K_d from 0.02 to 0.2. There are now four eigenvalue branches. The fourth one (near 1 + \Delta T \cdot \beta \approx 0.97) is visible to the left on the real axis — it barely moves as K_d changes, since it mainly reflects the motor dynamics controlled by \beta. Compare this to the simpler PD plot above and note how the branch shapes differ once the non-instant model is included.

Before starting, try varying $\gamma_a$ and $\beta$ separately in the tool to understand their individual effects:

How does the ZIR change with changing \gamma_a?
How does the ZIR change with changing \beta?

We suggest trying (and taking screenshots of) the following experiments on your propeller arm, and then using the tool above with various values of \gamma_a and \beta until you can match simulation and experiment. To generate a ZIR experimentally, lift one end of the arm (that is, rotate the arm upwards 200 milliradians or so), and then let go.

Set K_d = 0.1 (type "1 0.1" in the send window) and K_p = 1.0
Hold the arm approximate 0.2 radians above horizontal and then let go. Halt the plotter (be quick, so you capture the initial response) and record the result (take a screenshot).
Increase K_p to K_p = 1.5, and then to K_p = 2.0 , and retry your lift-and-let-go arm experiment. Are the natural frequencies and ZIR responses from the tool for these higher values of K_p consistent with your experiments? If not, adjust \beta and PERHAPS slightly adjust \gamma_a and try again.

A good strategy for finding \gamma_a and \beta is to start with the \gamma_a you found when just using proportional control, and the try values for \beta in the range [-200,-1].

Enter your estimate of \gamma_a:

Enter your estimate of \beta (remember, in this lab \beta is negative!):

Checkoff 5:

Describe your estimates of \gamma_a (which should be equal or very close to the value you found in the previous checkoff) and \beta.
Show us your changes to the model, and explain how they implement the "non-instant" motor model.
What properties of the ZIR are most affected by changes in \gamma_a? What properties are most affected by \beta?
Show us the ZIR responses that you measured and the corresponding responses from the model. How similar are the measured and modeled oscillation frequencies and the rate of oscillation amplitude decay (or growth if your model or experiment is unstable).

Better Controls, Models, and Manipulations

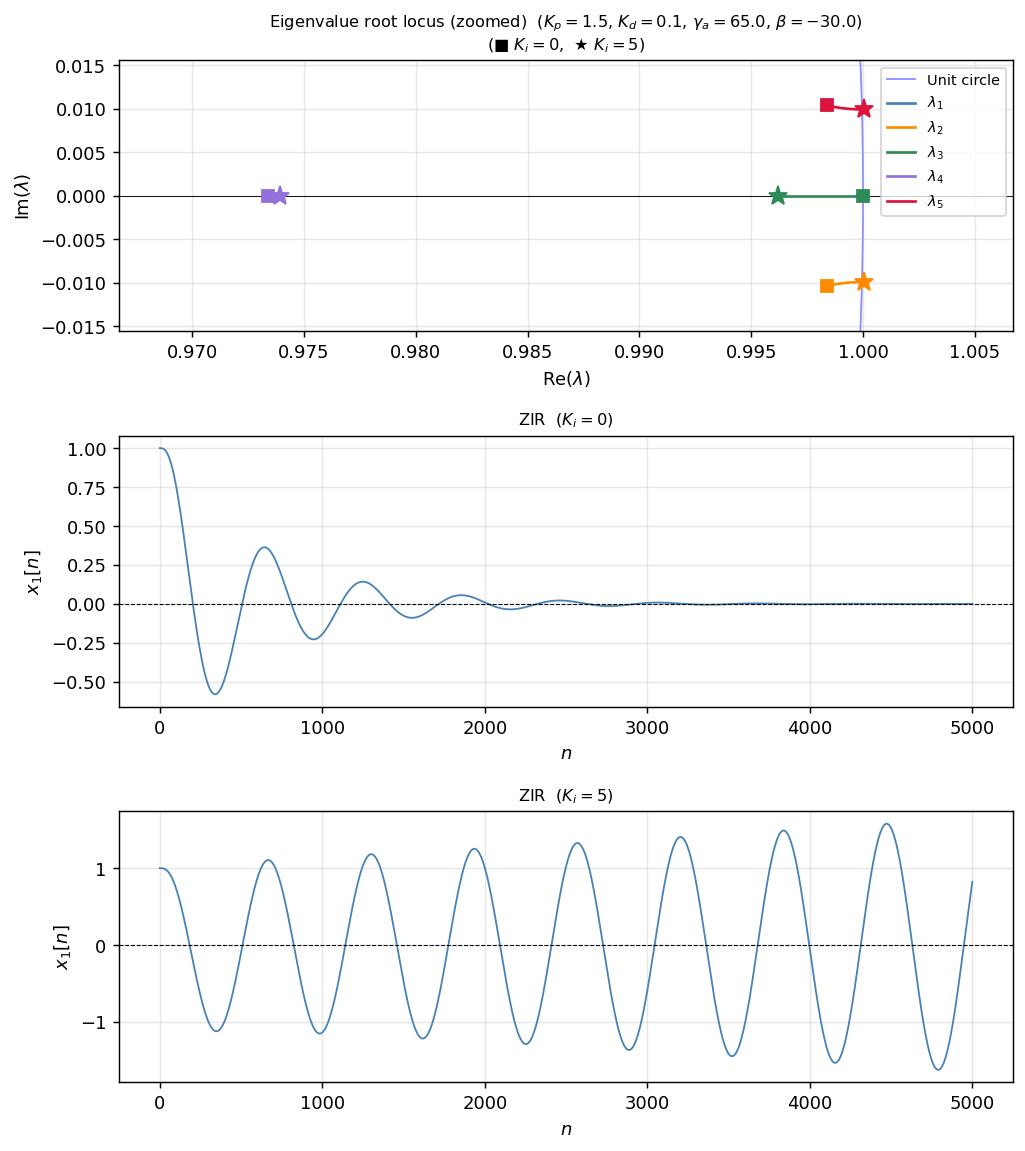

PID (Proportional, Integral, Derivative) controllers are ubiquitous in feedback systems, though for discrete-time systems, it would be more accurate to refer to such controllers as PSD (Proportional, Sum, Delta). An ad-hoc approach to designing a PSD controller is to select a proportional feedback gain, K_p, and then increase the gain of the Delta (or derivative) feedback, K_d, until the step response is sufficiently stable. Finally, add Sum (or integral) feedback, with gain K_i, to eliminate any remaining steady-state error.

So if we can easily run experiments, even automate the running of those experiments, what is the value of modeling? With a model we can get far more information that just the result of a single input-output experiment. In particular, we can compute the closed-loop system's natural frequencies as a function of PID controller gains, K_p, K_d, and K_i,, which will tell us how the system will response to a whole of range of inputs and disturbances. In addition, we can even generate plots of how those poles (another name for natural frequencies) move as a function of a parameter, a generalization of the so-called "root-locus" plot. Such plots can tell us what is feasible, like when we used a plot of poles versus proportional gain above to show it was impossible to stabilize the arm with proportional gain alone. Finally, we can use the model to solve a minimax problem with respect to the magnitude of the poles. That is, we could let the computer search through millions of senarios, to find the gains that minimize the closed-loop system's maximum magnitude pole. We would then be sure that resulting closed-loop system would be fast, and that any errors would decrease rapidly. There is much to the story of data and models, some of it with connections to machine learning, and this issue will reemerge many times during the semester.

But we digress. We can add an integral, or more precisely, a sum feedback term to our controller. The advantage of including an integral term is that any persistent error, no matter how small, will cause the sum to grow steadily. When the sum term is large enough, it will cause an adjustment to the motor command, persumably an adjustment that eliminates the small error.

The motor command with the proportional, delta, and sum feedback can be described by the difference equations

c[n] = K_p \cdot e[n] + K_d \cdot \mbox{del}[n] + K_i\cdot \mbox{sum}[n]

\mbox{del}[n] = \frac{e[n]-e[n-m]}{m \Delta T}

\mbox{sum}[n] = \Delta T\cdot e[n-1]+\mbox{sum}[n-1]

where e[n] = \theta_d[n] - \theta_a[n], \mbox{del}[n] is the delta ("derivative") term, and sum is the sum ("integral") term.

If you are paying very very very close attention, and compare how the error sum is formed and used on lines 130 through 144 in the Teensy sketch, you might notice an inconsistency between what is in the sketch and the sum equation in the model above.

When K_i > 0, the error sum becomes a fifth state variable. The fourth row of the 5\times5 A matrix gains one additional entry, A_{4,5}, relating arm acceleration to the error sum state. Derive A_{4,5} and enter it below (use Ki for K_i, G for \gamma_a, B for \beta, dT for \Delta T):

A45 =

Implementing and Testing the PID Controller.

In this section you will analyze the new closed-loop system and conduct experiments to understand the model's predictive power. When K_i > 0, the error sum becomes a fifth state variable, extending the A matrix to 5\times5. Once you have derived and checked your formula for A_{4,5} above, enter the full 5\times5 matrix into the tool, using your calibrated \gamma_a and \beta values. To give you a sense of what the tool should produce, here is an example sweeping K_i from 0 to 5 with K_p=1.5, K_d=0.1, \gamma_a=65, \beta=-30:

The integrator pole (■ at \lambda=1 when K_i=0) moves to the right as K_i increases — the ★ at K_i=5 is just outside the unit circle, indicating instability. The complex-conjugate pair moves only slightly. Use the tool with your own \gamma_a and \beta to find the range of K_i values for which all eigenvalues remain inside the unit circle, then sweep K_p and K_d at your chosen K_i to design your controller.

Try the following experiments:

Compare the tool's ZIR response to your arm's response when K_i > 0. You cannot compare using the lift-arm-and-drop approach when there is an integral term — once you lift up the arm, the error sum starts growing and will be very large before you let go, whereas the tool assumes all initial conditions are zero. A better approach is to monitor the response of your system to input step changes, and exploit the linearity of the system. To do this, set the input's amplitude to 0.1 (type 6 0.1 in the send window) and its period to 0.1 (type 5 0.1).
Once you are satisfied that you have a reasonable match between your arm and the tool's simulation, use the complete model to design the gains of your controller. What are you going to try to minimize? Note: There are practical tradeoffs to make here. The higher the gains, particularly the K_d gain, the more noise in measurement will affect the output. The lower the proportional gain, and the higher the derivative gain, the slower the step response and the greater the error. There is no 'correct' answer, but rather, many answers can be justified. Use the tool and your model!
How is the rejection of transient and steady-state disturbances affected by including the integral (aka sum) term? To see the advantage of using the integral term, try dropping a Lego "U" on the arm as shown in the picture below.
Checkoff 6:
- Demonstrate disturbance rejection as follows. Find values for Kp and Kd (with Ki=0) so that the measured step response converges within a second. Then increase Ki to decrease the disturbance caused by dropping the LEGO U on the propeller arm. What values of Kp, Kd, Ki work best?
- Use the Matrix Root-Locus and Trajectory Tool to find values for K_p and K_d that yield good step responses when K_i = 10.
- Compare measured results with and without the integral (sum) term.
- In this week's postlab, we will develop a model for the system's responses to disturbances. Measure (and take screenshots of) the result of dropping the LEGO U on the propeller arm for Ki for use in your postlab. Be sure to try gains for which the response to dropping the Lego U results in oscillations.
Loading...
